Fuse Panel, Removing And Installing, 48 V System, 0K4: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to Battery -A-, DISCONNECTING AND CONNECTING, IN ENGINE/MOTOR COMPARTMENT (0K0) .
-- Remove the carpet. Refer to CARPET, REMOVING AND INSTALLING .

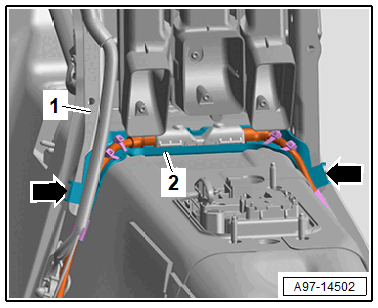

-- Free up the bracket -2- at the instrument panel crossmember -1- -arrows-.

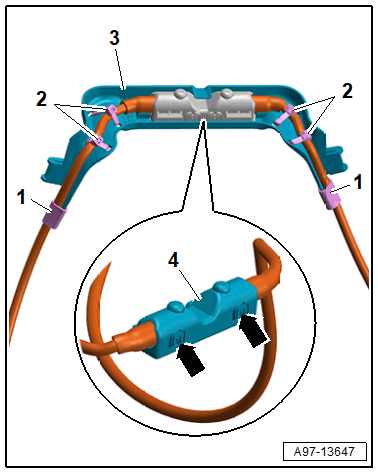

-- Cut the cable ties -2- and push the rubber holders -1- to the side.
-- Remove the wiring guide -3-.
-- Release the catches -arrows- and open the cover -4-.

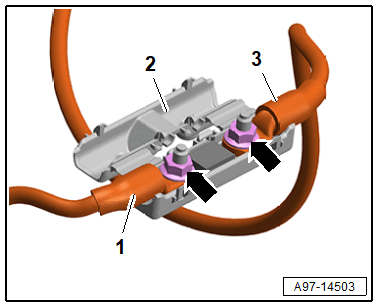

-- Remove the nuts -arrows- and the wire -1 and 3-.
-- Remove the wire junction -2-.
