Fuse Panel B -SB- IN E-BOX, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- TFSI: remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- TDI: remove the air filter housing. Refer to the appropriate Service Information. .
-- Press the release button -arrows- and remove the cover -1- for the engine compartment E-box.
-- Free up the wiring harness -3-.
-- Open the tab using a screwdriver -2- and remove the front cover -1- upward.
-- Remove the wire -3- and free it up.

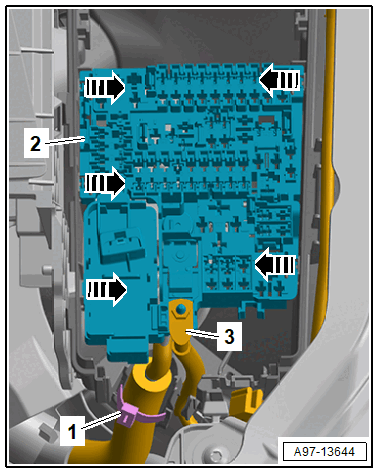

-- Cut the cable tie -1- at the lower wiring harness.
-- Open the retainers -arrows- and remove Fuse Panel B -SB- -item 2-.

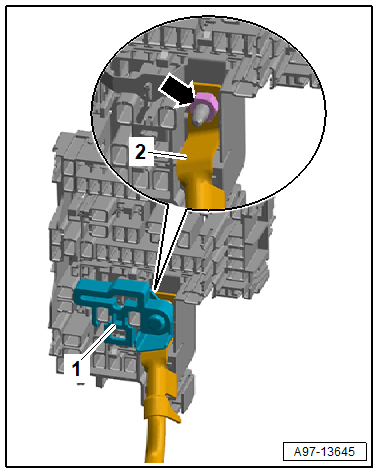

-- Pry off the cover -1-.
-- Remove the nut -arrow- and the wire -2-.
