Fuse Panel A -SA-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with high-voltage system:
-- Remove the Electric Drive Power and Control Electronics -JX1-. Refer to the appropriate Service Information. .
Vehicles without high-voltage system:
-- Remove the battery. Refer to BATTERY, REMOVING AND INSTALLING .
Continuation for All Vehicles:

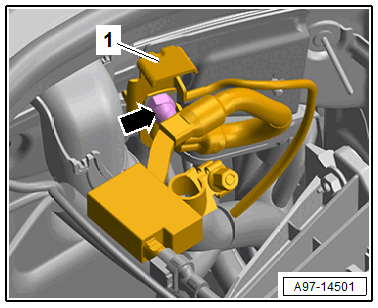

-- Remove the nut -arrow-.
-- Remove the ground connection -1- together with the wire.

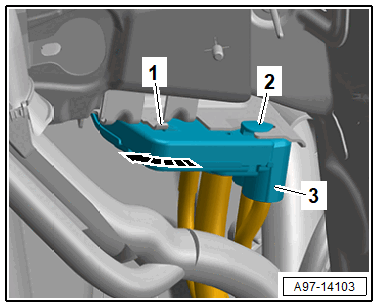

-- Release the retainer -1-.
-- Pivot the Fuse Panel A -SA- -item 3- to the side -arrow-, until the guide -2- is freed up.
-- Remove the fuse panel forward from the bracket.

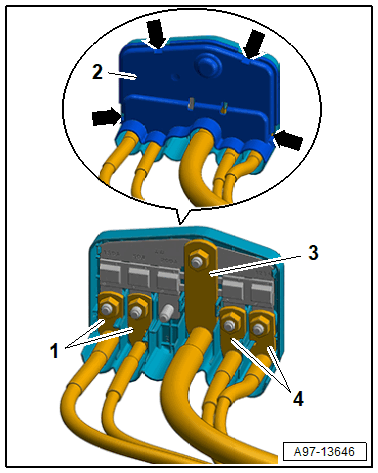

-- Release the retainers -arrows-.
-- Remove the cover -2-.
-- Remove and free up the wires -1, 3, 4-.
