E-Box, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- TFSI: remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- TDI: remove the air filter housing. Refer to the appropriate Service Information. .

-- Remove the battery. Refer to BATTERY, REMOVING AND INSTALLING .

-- TFSI: Remove the engine/motor control module and put aside with connected connectors. Refer to ENGINE/MOTOR CONTROL MODULE -J623-, REMOVING AND INSTALLING .

-- TDI: Remove the engine/motor control module and put aside with connected connectors. Refer to the appropriate Service Information. .

-- Press the release button -arrows- and remove the cover -1- for the engine compartment E-box.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

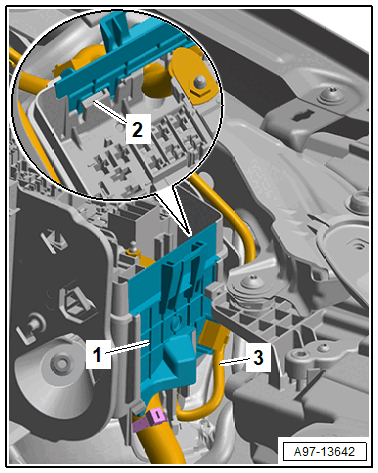

-- Open the tab using a screwdriver -2- and remove the front cover -1- upward.

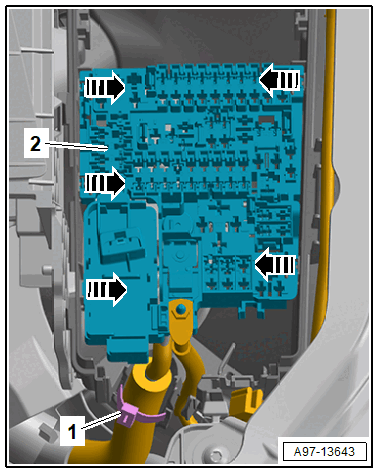

-- Cut the cable tie -1- at the lower wiring harness.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -arrows-, remove the Fuse Panel B -SB- -item 2- and set it to the side.

-- Free up the wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

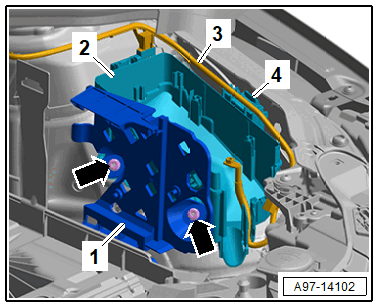

-- Remove the nuts -arrows- and then remove the engine control module bracket -1-.

-- Open the tab -4- and disengage the Engine compartment E-box -2- from the threaded pins.

-- Remove the engine compartment E-box upward.
