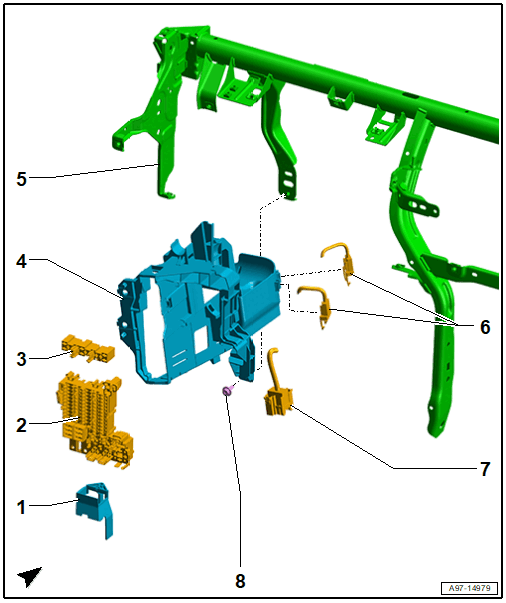

Component Location Overview - Relay Panel, Instrument Panel/A-Pillar Fuse Panel
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Insertion Aid
- Fuse Panel C -SC-
- Removing and Installing. Refer to the appropriate Service Information.
- Relay Mount
- Bracket
- For vehicle electrical system control module
- Instrument Panel Crossmember
- Auxiliary Fuse Panel
- Auxiliary Fuse Panel
- Bolt
- Quantity: 3
- 4.5 Nm
