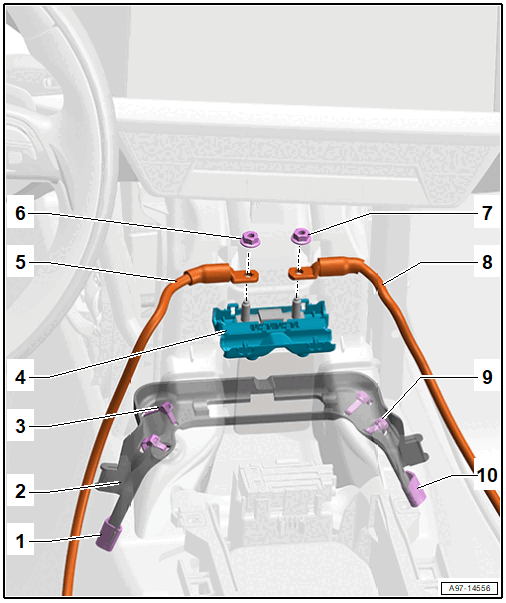

Component Location Overview - 48 V System, 0K4
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Rubber Bracket
- Cable Guide
- Cable Tie
- Quantity: 2
- Fuse Panel
- Removing and Installing. Refer to FUSE PANEL, REMOVING AND INSTALLING, 48 V SYSTEM, 0K4 .
- Line
- To the Voltage Converter, 48 V/12 V -A7-
- Nut
- 18 Nm
- Nut
- 18 Nm
- Positive Cable
- To the Battery, 48 V -A6-
- Cable Tie
- Quantity: 2
- Rubber Bracket
