Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
-- Remove the driver side footwell vent. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
RHD vehicle:
-- If equipped, remove the TV-Tuner -R78- and the bracket. Refer to the appropriate Service Information. .
Continuation for All Vehicles:

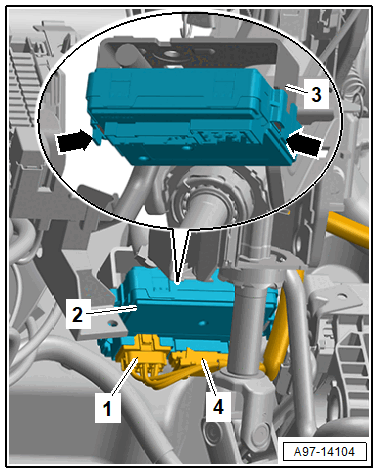

-- Disconnect the connectors -1 and 4-.
-- Release the retainers -arrows-.
-- Remove the Data Bus on Board Diagnostic Interface -J533- -item 2- downward from the bracket -3- and guide out.
-- Disconnect the connectors -1 and 4-.
--
