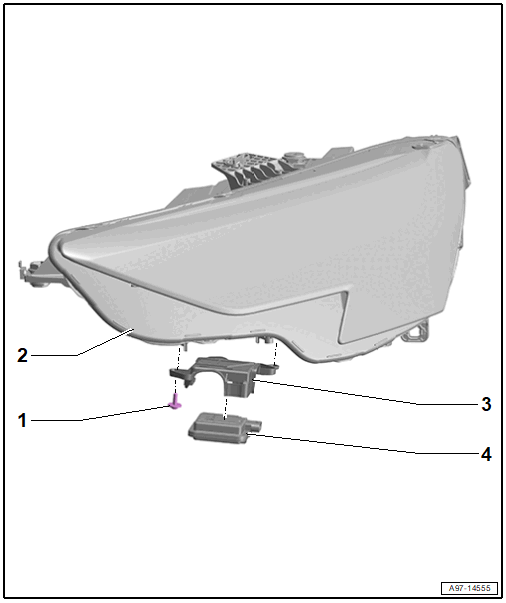

Component Location Overview - Outer Control Modules
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 2
- 3 Nm
- Left Headlamp
- Bracket
- For the Garage Door Opener Control Module -J530-
- Garage Door Opener Control Module -J530-
- Removing and Installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
