Heater And A/C Unit Identification

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Ensure the correct allocation when replacing components. Interchanging components from different manufacturers is not permitted. Refer to the Electronic Parts Information.

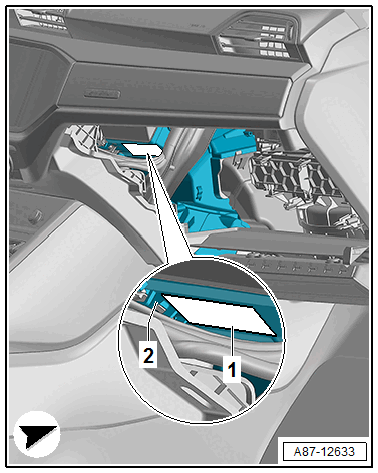

The manufacturer sticker -1- is visible only after removing the glove compartment on the heater and A/C unit -2-.
