Left Front Parallel Parking Assistance Sensor -G568- /Right Front Parallel Parking Assistance Sensor -G569-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN FRONT SECTION OF VEHICLE .
-- Loosen the front wheel housing liners in the front area. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

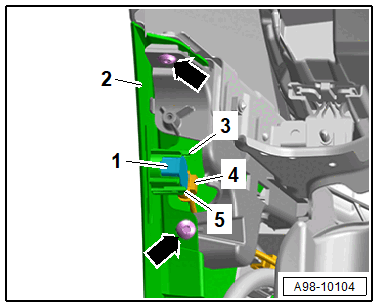

-- Remove the bolts -arrows-.
-- Release the retainers -3 and 5-.
-- Slightly pull the bumper cover side piece -2- outward and remove the sensor -1- from the mount.
-- Disconnect the connector -4- by sliding the retainer toward the rear and pressing the release downward.
