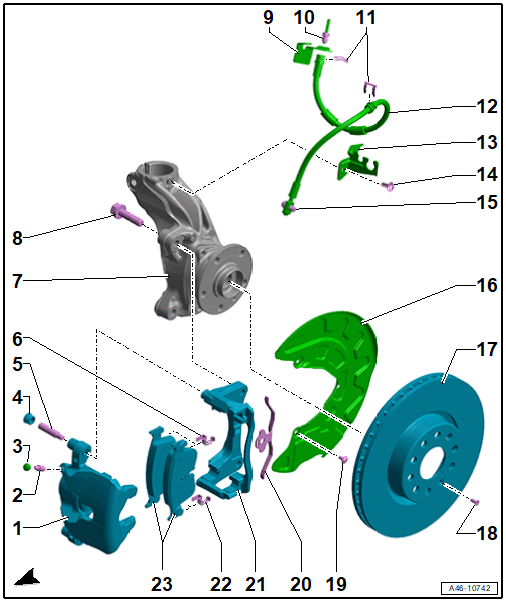

Overview - Single-Piston Brake 1ZD

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Brake Caliper
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Do not disconnect the brake hose when replacing a brake pad
- Refer to BRAKE CALIPER, REMOVING AND INSTALLING, SINGLE AND DUAL-PISTON BRAKES
- Refer to BRAKE CALIPER, REPLACING, SINGLE AND DUAL-PISTON BRAKES
- Servicing. Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, SINGLE-PISTON BRAKE .
Bleed Screw
- 11 Nm
Protective Cap
Cap
Guide Pin
- Check ease of movement
- 35 Nm
Brake Pad Retaining Plate
Wheel Bearing Housing
Bolt
- 200 Nm
Bracket
- For the brake line/hose
Brake Line
- Do not change the bending shape.
- Replace a damaged or bent brake line
- 14 Nm
Springs
- Replace if damaged
Brake Hose
- Make sure the brake hose is routed correctly. Make sure the brake hose is not pinched, bent, twisted or rubbing against the vehicle
- Replace if damaged
- Make sure that tabs are properly seated in the grooves on the bracket.
Bracket
- For brake hose and wire
Bolt
- 8 Nm
Banjo Bolt
- Permanent with seals
- Clean any corrosion from the sealing surface on the brake caliper
- If damaged, replace the brake hose
- 35 Nm
Brake Shield
- Refer to BRAKE SHIELD, REMOVING AND INSTALLING
Brake Rotor
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Refer to BRAKE ROTOR, CHECKING
- Wear limit specified on the brake rotor
- Always replace on both sides of the axle. Replace the brake pads as well.
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING
Bolt
- 8 Nm
Bolt
- 12 Nm
Spring
Brake Carrier
- Refer to BRAKE CARRIER, REMOVING AND INSTALLING
Brake Pad Retaining Plate
Brake Pads
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Checking the brake pads, wear limit. Refer to BRAKE PADS, CHECKING THICKNESS .
- Inner right brake pad with brake pad wear sensor
- Refer to the grahpic below
- Refer to BRAKE PADS, REMOVING AND INSTALLING, SINGLE-PISTON BRAKE 1ZD

Brake pads 1ZD installation position

Courtesy of AUDI OF AMERICA, LLC

Clip the inner brake pad with the spring -arrow- into the brake caliper piston
Engage the outer brake pad into the brake carrier
