Overview - Dual-Piston Brakes
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

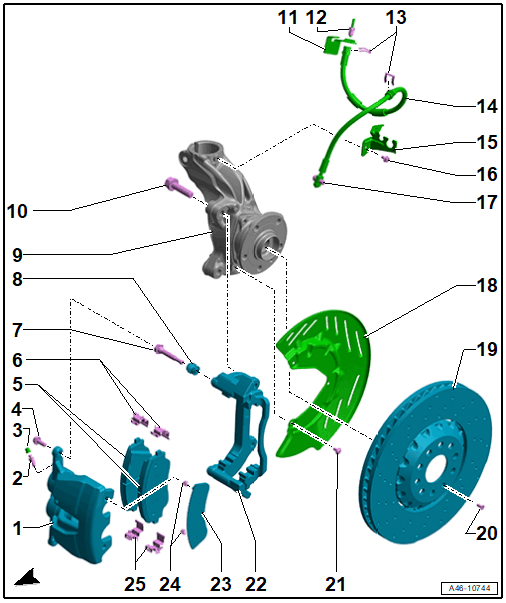

- Brake Caliper
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Do not disconnect the brake hose when replacing a brake pad
- Refer to BRAKE CALIPER, REMOVING AND INSTALLING, SINGLE AND DUAL-PISTON BRAKES
- Refer to BRAKE CALIPER, REPLACING, SINGLE AND DUAL-PISTON BRAKES
- Servicing. Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, DUAL-PISTON BRAKE .
- Bleed Screw
- 11 Nm
- Protective Cap
- Bolt
- Self-locking
- Replace after removing
- 35 Nm
- Brake Pads
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Checking the brake pads, wear limit. Refer to BRAKE PADS, CHECKING THICKNESS .
- Always replace on both sides of the axle.
- Refer to BRAKE PADS, REMOVING AND INSTALLING, SINGLE-PISTON BRAKE EXCLUDING 1ZD, DUAL-PISTON BRAKES
- Inner right brake pad with brake pad wear sensor
- Brake Pad Retaining Plate
- Guide Pin
- Check ease of movement
- Dust Protector
- Replace if damaged
- Wheel Bearing Housing
- Bolt
- 200 Nm
- Bracket
- For the brake line/hose
- Brake Line
- 14 Nm
- Springs
- Replace if damaged
- Brake Hose
- Make sure the brake hose is routed correctly. Make sure the brake hose is not pinched, bent, twisted or rubbing against the vehicle
- Replace if damaged
- Make sure that tabs are properly seated in the grooves on the bracket.
- Bracket
- For brake hose and wire
- Bolt
- 8 Nm
- Banjo Bolt
- Permanent with seals
- Clean any corrosion from the sealing surface on the brake caliper
- If damaged, replace the brake hose
- 35 Nm
- Brake Shield
- Brake Rotor
- Allocation. Refer to the Electronic Parts Information (ETKA).
- Refer to BRAKE ROTOR, CHECKING
- Wear limit specified on the brake rotor
- Always replace on both sides of the axle. Replace the brake pads as well.
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING
- Bolt
- 8 Nm
- Bolt
- 12 Nm
- Brake Carrier
- Trim
- Only installed depending on the model
- No replacement part
- Clamping Sleeve
- Only installed depending on the model
- No replacement part
- Brake Pad Retaining Plate
- Brake pad anti-friction plates
