Brake Pads, Removing And Installing, Single-Piston Brake Excluding 1ZD, Dual-Piston Brakes: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Label the brake pads when removing if they are going to be used again. Install in the same position, otherwise the braking effect will be uneven.

-- Remove the affected front wheel. Refer to WHEEL, CHANGING .

-- Disconnect the connector -arrow- for the brake pad wear indicator contact from the right brake caliper.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- by counterholding at the guide pins -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the brake caliper.

CAUTION:

There is a risk of damaging the brake hose due to the weight of the brake caliper.

- Never let the brake caliper hang on the brake hose.

-- Hang the brake caliper using a suitable wire.

CAUTION:

There is a risk of damaging the brake caliper piston if handled incorrectly.

- Never activate the brakes if the brake caliper is removed.

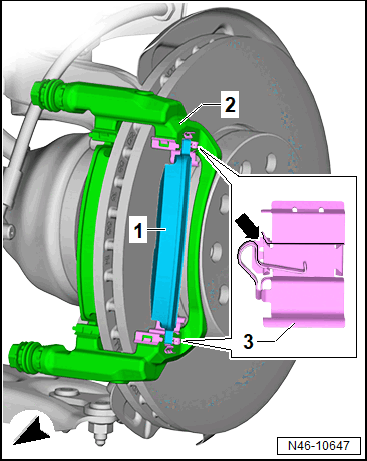

-- Remove the outer brake pad -1- first at an angle outward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the brake pad in between the tabs -arrow- of the springs -3- toward the front.

-- Repeat the procedure on the inner brake pad.

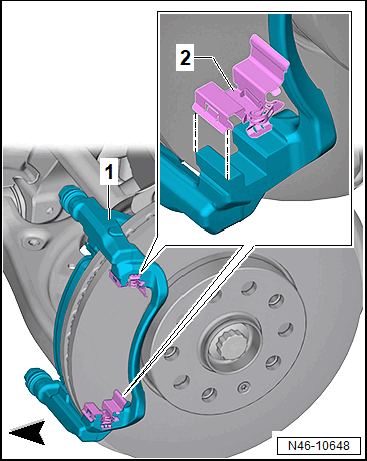

-- Remove the springs -2- from the brake carrier -1-.

Courtesy of AUDI OF AMERICA, LLC
