Mounting Bracket, Removing And Installing, LHD Vehicle: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the crash bolster. Refer to CRASH BOLSTER, REMOVING AND INSTALLING .
-- Disconnect the brake pedal from the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .
-- Remove the buttons -arrows-.
-- Free up the carpet in the area of the universal joint and push it slightly rearward.
-- Remove the bolt -1- and remove the universal joint -2- from the steering gear -arrow-.

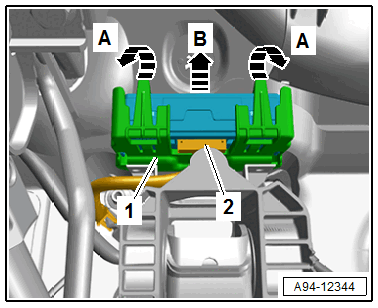

-- Release the Headlamp Range Control Module -J431- -A arrows- and remove it upward from the bracket -1- -arrow B-
-- Disconnect the connector -2- on the control module
-- Disconnect the connector -2- on the accelerator pedal module -3- and free up the wire.
Fig 1: Accelerator Pedal Position Sensor -G79- / Accelerator Pedal Position Sensor 2 -G185- Component Location
-- Remove the nuts -1 and 4- and then remove the mounting bracket.
