Brake Pedal, Removing And Installing, LHD: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the footwell vent on the driver side. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .

-- Remove the crash bolster. Refer to CRASH BOLSTER, REMOVING AND INSTALLING .

-- Disconnect the brake pedal from the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .

-- Remove the buttons -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the carpet in the area of the universal joint and push it slightly rearward.

-- Remove the bolt -1- and remove the universal joint -2- from the steering gear -arrow-.

Courtesy of AUDI OF AMERICA, LLC

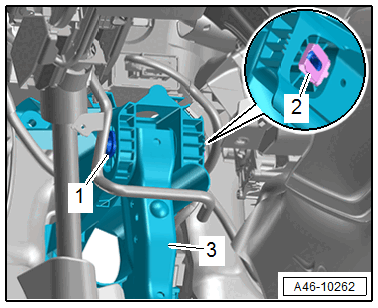

-- Remove the clamp -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mounting pin -1- at the same time turn the steering column a maximum 180°.

-- Push back the steering column in the previous position.

-- Remove the brake pedal -3- downward from the mounting bracket.
