Brake Pedal, Attaching To Brake Booster
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Procedure

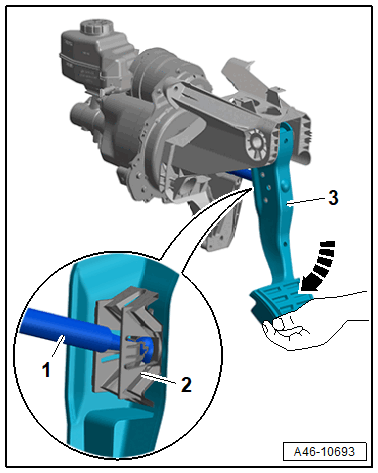

-- Hold the pushrod ball head -1- in front of the mount -2- and push the brake pedal -3- toward the brake booster -arrow- until the ball head engages audibly.
CAUTION:
Faulty brakes increase the risk of an accident.
- Make sure the brakes are working correctly before driving the vehicle for the first time.
