Overview - Condenser

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

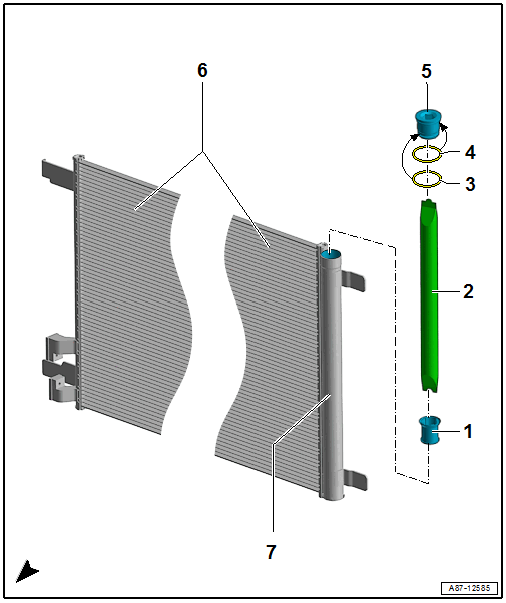

Fig 1: Exploded View Of Condenser

Courtesy of AUDI OF AMERICA, LLC

Receiver/Dryer Insert
- There are different versions.
- Insert all the way in the mount in the receiver/dryer on the proper side.
- With screen
- Check the receiver/dryer; if there is contamination, clean the refrigerant circuit or replace the condenser, if necessary. Refer to A/C System, General Information or REFRIGERANT CIRCUIT, CLEANING .
- This illustration shows an insert as it is installed on a "Denso" condenser.
Desiccant Bag
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
O-Ring
- Replace after removing. Refer to the Parts Information for the version.
- Coat with refrigerant oil before installing. Refer to SEALS AND GASKETS .
O-Ring
- Replace after removing. Refer to the Parts Information for the version.
- Coat with refrigerant oil before installing. Refer to SEALS AND GASKETS .
Plug
- Modine: 3 Nm
- Showa/ Keihin: 5 Nm
- Valeo: 10 Nm
- Replace after removing
- There are different versions.
- Removing and Installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
Condenser
- There are different versions. Refer to the Parts Information.
- Refrigerant Lines, Removing and Installing. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING FROM CONDENSER .
- Removing and Installing. Refer to CONDENSER, REMOVING AND INSTALLING .
Receiver/Dryer
- Receiver/dryer is a component of the condenser
- Check the receiver/dryer; if there is contamination, clean the refrigerant circuit or replace the condenser, if necessary. Refer to A/C System, General Information or REFRIGERANT CIRCUIT, CLEANING .
