Heater Core Coolant Pipes, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .

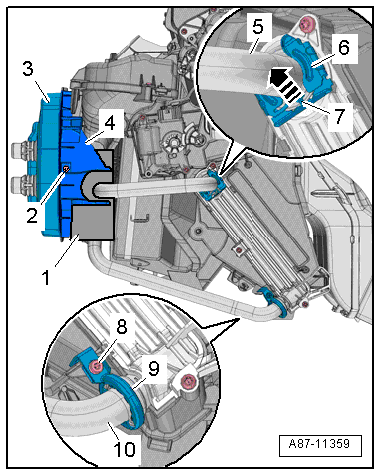

-- Remove the sealing boot -3- to the plenum chamber bulkhead.
-- Remove the bolt -2-.
-- Remove the bracket -4- for the coolant pipes to the left.
-- Remove the foam -1-.
-- Lift the retainer -7-, remove the clip -6- and remove the upper coolant line -5- from the heater core.
-- Remove the bolt -8-.
-- Remove the screw-type clamp -9- and then remove the lower coolant line -10- from the heater core.
-- Remove the coolant pipes.
