Heater And A/C Unit Bracket, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the connector -1-.
-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .

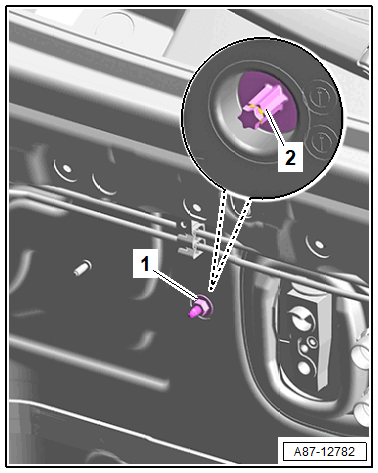

-- Fold the heat shield mat -2- behind the ABS unit to the side.
-- Remove the nut -1-.
-- Remove the bracket -2- in the vehicle interior.
