Heater And A/C Unit Bracket, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

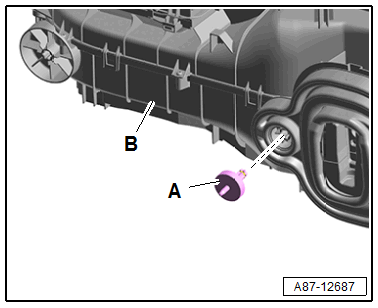

-- Insert the brackets -A- into the mounts on the heater and A/C unit -B- and bring the A/C unit into the installation position.
-- Install the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
-- Tighten the nut on the bracket.
-- Install the remaining components.
