Evaporator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .

-- Remove the Fresh Air Blower -V2-. Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .

-- Remove the air intake duct. Refer to AIR INTAKE DUCT, REMOVING AND INSTALLING .

-- Remove the coolant pipes from the heater core. Refer to HEATER CORE COOLANT PIPES, REMOVING AND INSTALLING .

-- Disconnect the air distribution housing and evaporator housing. Refer to AIR DISTRIBUTION HOUSING, REMOVING AND INSTALLING .

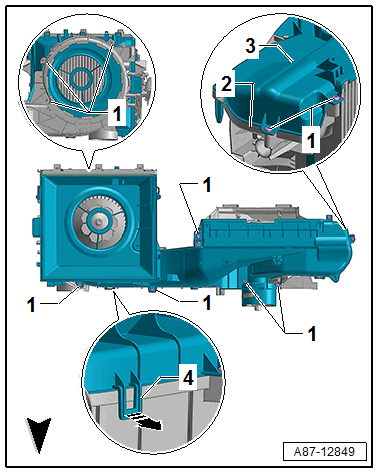

-- Remove the bolts -1-.

-- Release the tabs -4- all the way around -arrows-.

-- Remove the evaporator housing upper section -3- from the lower section -2-.

-- Remove the evaporator -2- from the evaporator housing lower section -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expansion valve. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .

-- Remove the seal/insulation -3- by pulling the moving part -5- to the side -arrow-.

-- Remove the retainer -4- for the refrigerant lines.
