Air Distribution Housing, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
-- Remove the coolant pipes from the heater core. Refer to HEATER CORE, REMOVING AND INSTALLING .

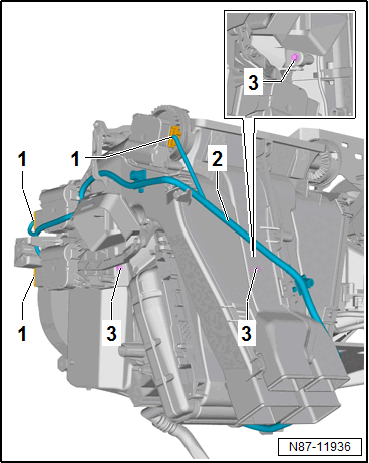

-- Disconnect the connectors -1-.
-- Unclip and move the wiring harness -2- to the side.
-- Remove the bolts -3-.
-- Remove the bolts -2-.
-- Release the tabs -1 and 3-.
-- Tilt the air distribution housing -4- toward the rear in direction of -arrow- and disengage.
