Front A/C Display Control Head -E87-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

If the Front A/C Display Control Head -E87- is being replaced, perform the test plan for replacing the Front A/C Display Control Head -E87- using the Vehicle Diagnostic Tester .

Procedure

-- Connect the Vehicle Diagnostic Tester .

-- Select the Diagnostic mode and start the diagnosis.

-- Select the Test plan tab.

-- Select the Select individual test button and select the following tree structure consecutively:

Diagnostic-capable systems
0008 - A/C/Heater Electronics
0008 - A/C/Heater Electronics Functions
0008 - Replacing Control Module - Front A/C Display Control Head -E87-

-- Remove the passenger side instrument panel decorative trim. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .

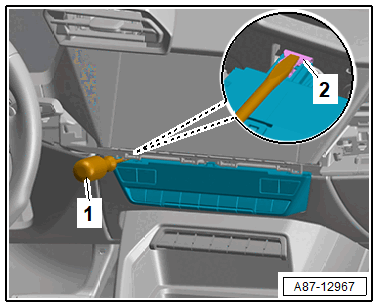

-- Insert the screwdriver -1- into the guide on the left side and release the retainer -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Engage the T-Handle Hook :3438 -4- on the rear edge of the control head and carefully pull to release. Additional force may be necessary.

Courtesy of AUDI OF AMERICA, LLC

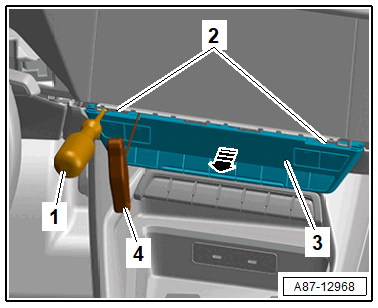

-- Release the retainers -2- in turns using a screwdriver -1- and pull the control head -3- out of the mount using the T-Handle Hook :3438 -4-.

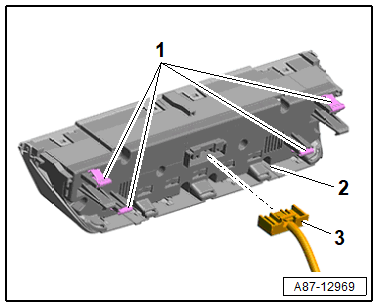

-- Disconnect the connector -3- on the back of the Front A/C Display Control Head -E87-.

Courtesy of AUDI OF AMERICA, LLC
