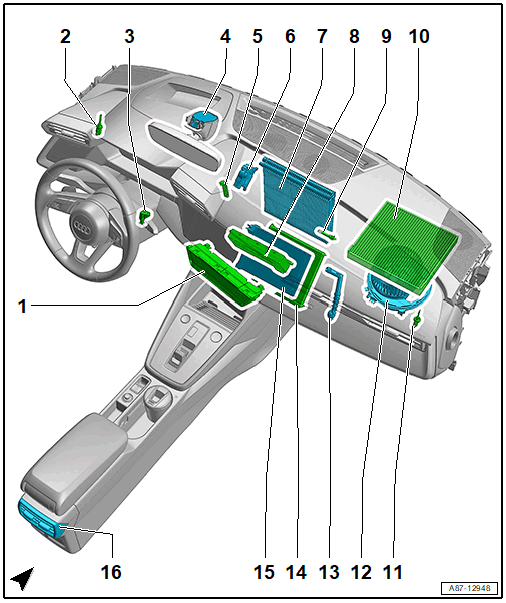

Component Location Overview - Components In Front Vehicle Interior
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Front A/C Display Control Head -E87-
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to Front A/C Display Control Head -E87-, REMOVING AND INSTALLING .
- Left Vent Temperature Sensor -G150-
- Installed depending on vehicle equipment
- Removing and Installing. Refer to Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING .
- Vehicle Interior Temperature Sensor -G1090-
- Removing and Installing. Refer to Vehicle Interior Temperature Sensor -G1090-, REMOVING AND INSTALLING .
- Installed depending on vehicle equipment
- RHD: is a mirror image
- Rain/Light Recognition Sensor -G397- with Humidity Sensor -G355- and Sunlight Photo Sensor -G107-
- Installed depending on vehicle equipment
- Removing and installing. Refer to Humidity Sensor -G355-, REMOVING AND INSTALLING or Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .
- Footwell Vent Temperature Sensor -G192-
- Removing and Installing. Refer to Footwell Vent Temperature Sensor -G192-, REMOVING AND INSTALLING .
- RHD: is a mirror image
- Actuator
- Example for all adjustment motors
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - FRONT ACTUATORS .
- Evaporator
- Removing and Installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
- Heating and Air Conditioning Control Module -J979-
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to Heating and Air Conditioning Control Module -J979-, REMOVING AND INSTALLING .
- Evaporator Vent Temperature Sensor -G263-
- Removing and Installing. Refer to Evaporator Vent Temperature Sensor -G263-, REMOVING AND INSTALLING .
- Dust and Pollen Filter
- Removing and Installing. Refer to DUST AND POLLEN FILTER, REPLACING .
- RHD: is a mirror image
- Right Vent Temperature Sensor -G151-
- Installed depending on vehicle equipment
- Removing and Installing. Refer to Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING .
- Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-
- Overview. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE HOUSING .
- RHD: is a mirror image
- Condensation Water Drain
- Check using the Vehicle Diagnostic Tester Refer to CONDENSATION WATER DRAIN HOSE, CHECKING .
- Removing and Installing. Refer to CONDENSATION WATER DRAIN HOSE, REMOVING AND INSTALLING .
- Heater Core
- Removing and Installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
- Auxiliary Heater Heating Element -Z35-
- Removing and Installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
- Rear Center Console Vent with Rear Temperature Selection Potentiometer -G538-
- Removing and Installing. Refer to Rear Temperature Selection Potentiometer -G538-, REMOVING AND INSTALLING .
- Installed depending on vehicle equipment
- Rear Temperature Selection Potentiometer -G538- is integrated in the rear center console vent
