Center Instrument Panel Vent Air Duct, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

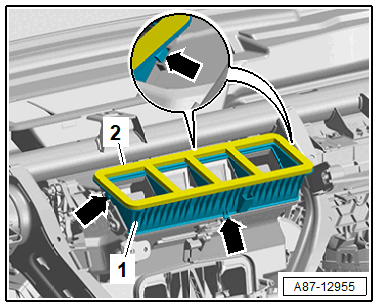

-- Release the catches -arrows- with the Angled Screwdriver :VAS6416 .
-- Remove the center instrument panel vent air duct -1-.
