Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch the ignition off.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -3-.

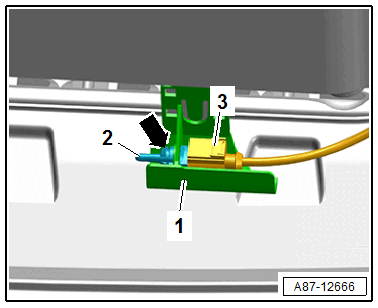

GWWA87-12666Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -arrow-, remove the outside air temperature sensor -2- from the mount -1-.
