Heating and Air Conditioning Control Module -J979-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- If the Heating and Air Conditioning Control Module -J979- is being replaced, perform the test plan for replacing the Heating and Air Conditioning Control Module -J979- using the Vehicle Diagnostic Tester .
Procedure
-- Connect the Vehicle Diagnostic Tester .
-- Select the Diagnostic mode and start the diagnosis.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Diagnostic-capable systems
- 0008 - A/C/Heater Electronics
- 0008 - A/C/Heater Electronics Functions
- 0008 - Control Module, Replacing
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

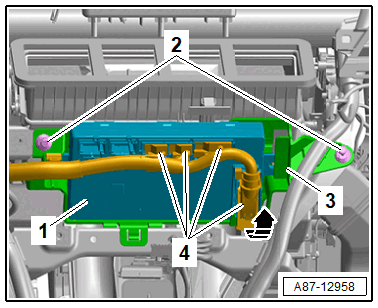

-- Disconnect the connectors -4-.
-- Remove the expanding clips -2- using the Pliers :T40172A .
-- Remove the Heating and Air Conditioning Control Module -J979- -1- with the bracket -3-.

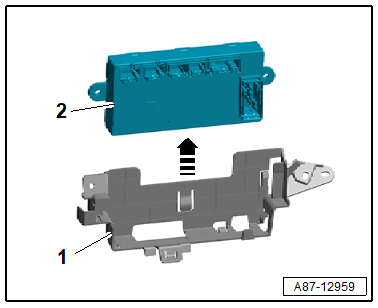

Heating and Air Conditioning Control Module -J979-, Separating from Bracket:
-- Release the locking tab on the back of the Heating and Air Conditioning Control Module -J979- -2- and pull the control module out of the bracket -1- -arrow-.
