Footwell Vent Temperature Sensor -G192-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver side footwell vent. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

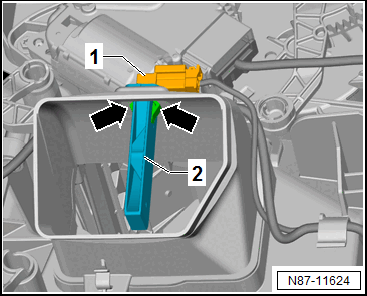

-- Slightly lift the Footwell Vent Temperature Sensor -G192- -2-.
-- Release the catches -arrows- with a Trim Removal Wedge :3409 .
-- Remove the Footwell Vent Temperature Sensor -G192- -2- upward.
-- Disconnect the connector -1-.
