A/C System Particulate Matter Concentration Sensor -G930-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

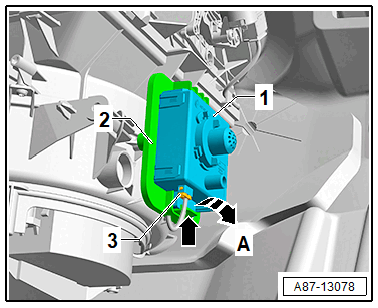

-- Disconnect the connector -3-.
-- Release the catch -arrow- and disengage the A/C System Particulate Matter Concentration Sensor -G930- -1- in the direction of -the arrow A-.

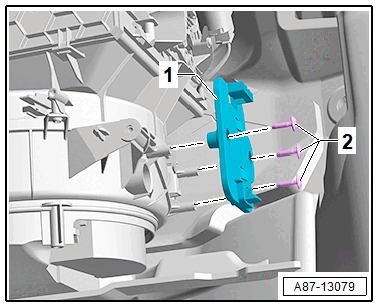

Bracket Removal:
-- Remove the bolts -2- and the bracket -1-.
