Right Temperature Control Door Motor -V159-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with High-Voltage System
-- Switch off (deactivate) the "parking air conditioner". Refer to Owner's Manual.
Continuation for All Vehicles
-- Switch off the ignition.
-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

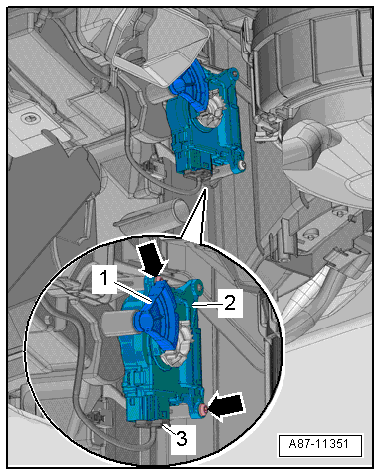

-- Remove the actuating shaft -1- for the temperature control door.
-- Remove the bolts -arrows-.
-- Remove the Right Temperature Control Door Motor -V159- -2-.
-- Disconnect the connector -3-.
