Defroster Door Motor -V107-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with High-Voltage System
-- Switch off (deactivate) the "parking air conditioner". Refer to Owner's Manual.
Continuation for All Vehicles
-- Switch off the ignition.
-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
-- If installed: remove the Information Electronics Control Module 1 -J794- with the mount and let it hang with the wires still attached. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .

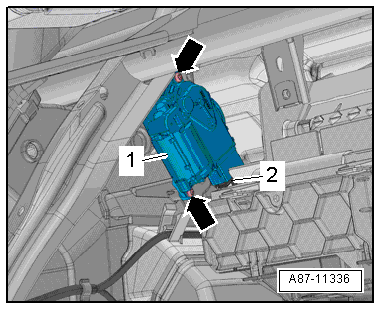

-- Remove the bolts -arrows-.
-- Remove the Defroster Door Motor -V107- -1-.
-- Disconnect the connector -2-.
