Component Location Overview - Front Actuators, CLIMATRONIC With Rear Controls, Pr Number KH5

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

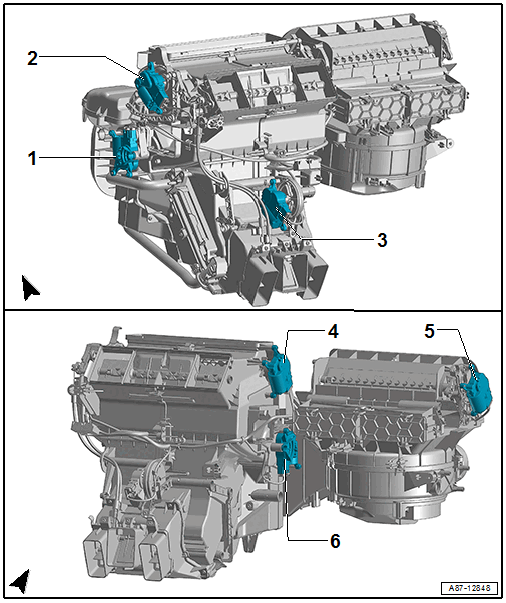

GWWA87-12848Courtesy of AUDI OF AMERICA, LLC
  1. Left Temperature Control Door Motor -V158-
  2. Front Air Distribution Door Motor -V426-
  3. Rear Temperature Control Door Motor -V137-
  4. Defroster Door Motor -V107-
  5. Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
  6. Right Temperature Control Door Motor -V159-
