Vehicle, Lifting: A3
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
Procedure:

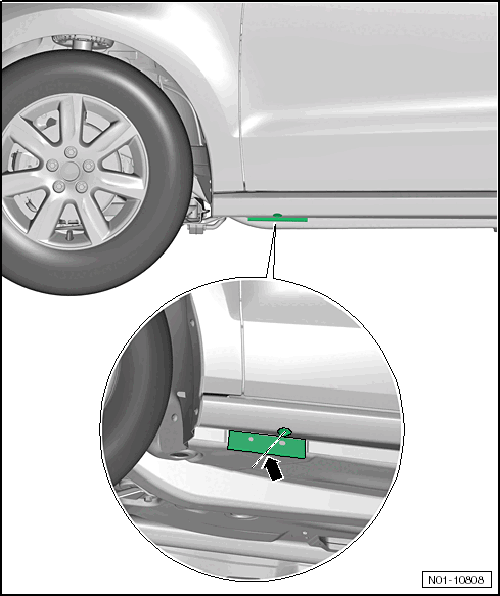

-- Front: position the hoist mounting plate on the side sill mounting point -arrow-.
 Courtesy of AUDI OF AMERICA, LLC
|

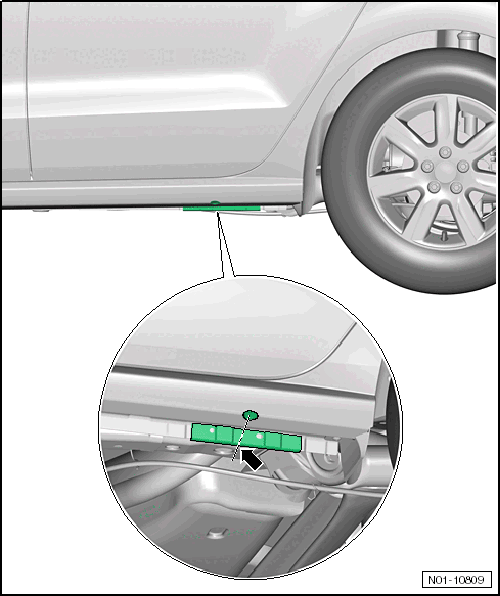

-- Rear: position the hoist mounting plate on the side sill mounting point -arrow-.
 Courtesy of AUDI OF AMERICA, LLC
|
NOTE:
The arrows on the side sill trim panel mark the positions of the mounting points.
