Starter, Removing And Installing, 1.0L/1.5L TFSI (0K4), 2.0L TDI, 0K0, Dual Clutch Transmission: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- TFSI: remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- TDI: remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

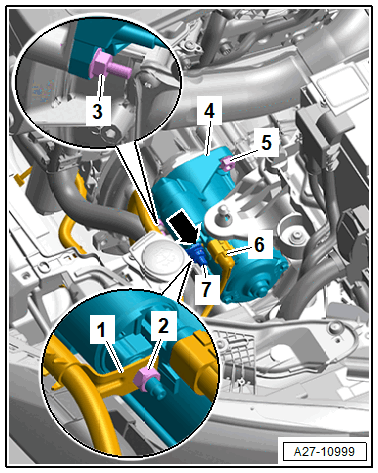

-- Disconnect the connector -6- by sliding the retainer back and pressing the release down.
-- Release the locking tab -arrow- and dismount the cap -7-.
-- Remove the nut -2- and remove the terminal 30/B+ wire -1- from the starter.
-- Remove the bolts -3 and 5-, then remove the starter -4- upwards.
