Overview - Starter, Dual Clutch Transmission Version 1, Automatic Transmission

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

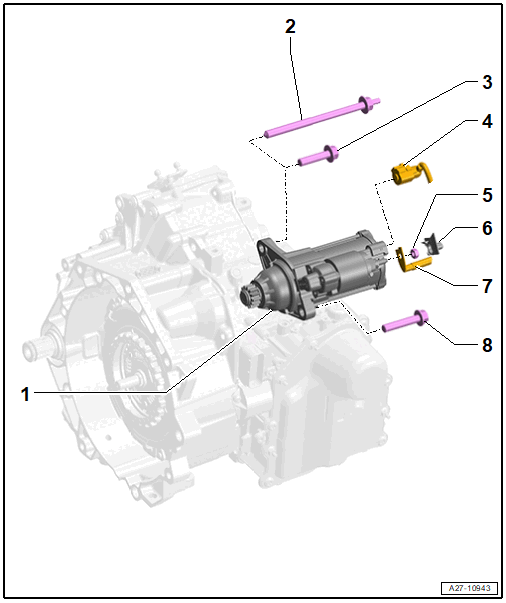

Fig 1: Exploded View Of Starter, Dual Clutch Transmission Version 1, Automatic Transmission

Courtesy of AUDI OF AMERICA, LLC

Starter
- Removing and Installing. Refer to STARTER, REMOVING AND INSTALLING .
Bolt
- Starter Threaded Connection on Engine/Transmission Flange
- Tightening specification. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS .
Bolt
- Threaded connection of the starter to the flange transmission
- Tightening Specifications
  - Threaded connection M10 - 40 Nm
  - M12 threaded connection - 80 Nm
Connector
Nut
- 20 Nm
Cap
- There are different versions.
30/B+ Terminal
Bolt
- There are different versions. Refer to the Parts Information.
- Tightening Specifications
  - Threaded connection M10 - 40 Nm
  - M12 threaded connection - 80 Nm
