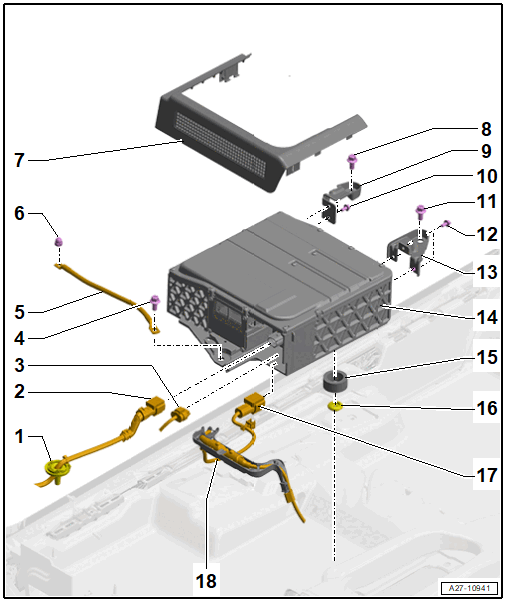

OVERVIEW - Battery, 48 V -A6-, 0K4
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Wire
- 48 V from the Starter Generator -C29-
- Connector
- Bolt
- 20 Nm
- Ground Wire
- De-energizing. Refer to 48V SYSTEM, DE-ENERGIZING .
- 20 Nm
- Nut
- 9 Nm
- Cover
- Bolt
- 20 Nm
- Exterior Bracket
- Bolt
- Quantity: 2
- 9 Nm
- Bolt
- 20 Nm
- Bolt
- Quantity: 3
- 9 Nm
- Interior Bracket
- Battery, 48 V -A6-
- Removing and Installing. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 .
- Foam Ring
- Grommet
- Wire
- To the Voltage Converter, 48 V/12 V -A7-
- Wiring Channel
