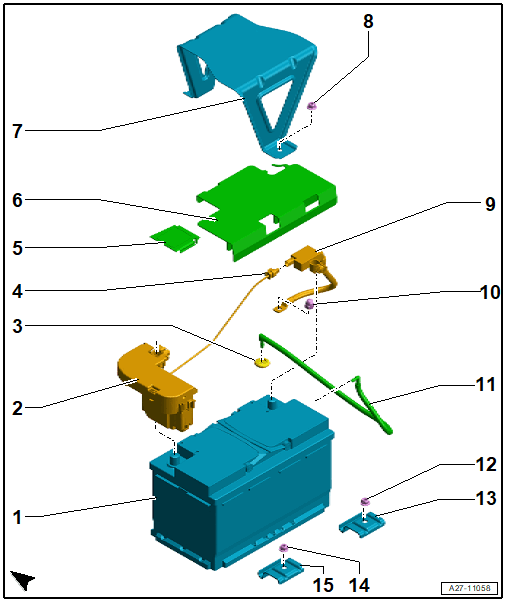

OVERVIEW - Battery -A-, IN LUGGAGE COMPARTMENT, 0K0
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Battery
- Checking. Refer to Battery, Checking .
- Removing and Installing. Refer to Battery -A-, REMOVING AND INSTALLING, IN ENGINE/MOTOR COMPARTMENT (0K0) .
- Main Fuse Box
- Overview. Refer to COMPONENT LOCATION OVERVIEW - MAIN FUSE PANEL .
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, IN LUGGAGE COMPARTMENT (0K0) .
- Nut: 5 Nm
- Grommet
- Wire
- For the Battery Monitoring Control Module -J367-
- Follow the sequence when connecting the ground cable. Refer to BATTERY JUMP START TERMINAL .
- Positive Terminal Cover
- Battery Cover
- Retaining Bracket
- Nut
- Quantity: 2
- 20 Nm
- Ground Wire
- With Battery Monitoring Control Module -J367-
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, IN LUGGAGE COMPARTMENT (0K0) .
- Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, IN LUGGAGE COMPARTMENT (0K0) .
- Nut: 5 Nm
- Nut
- 20 Nm
- Central Venting System Hose
- With integrated grommet
- Nut
- 20 Nm
- Bracket
- Nut
- 20 Nm
- Bracket
