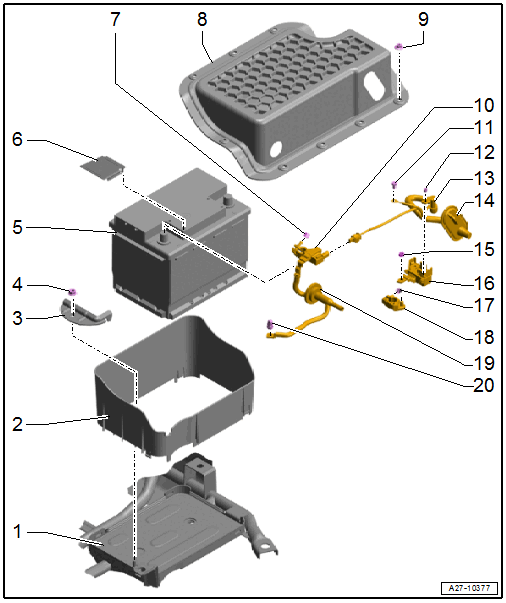

OVERVIEW - Battery -A-, 0K3
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Battery Tray
- Shared component with the fuel tank
- Battery Trim Panel
- Bracket
- Nut
- 20 Nm
- Battery
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K3 .
- Removing and Installing. Refer to Battery -A-, REMOVING AND INSTALLING, 0K3 .
- Negative Terminal Cover
- Nut
- 6 Nm
- Battery Connector Cover
- Nut
- Quantity: 9
- 9 Nm
- Ground Cable with Battery Monitoring Control Module -J367-
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K3 .
- Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, 0K3 .
- Bolt
- Tightening specification COMPONENT LOCATION OVERVIEW - BATTERY FUSE PANEL, HIGH-VOLTAGE SYSTEM, 0K3 .
- Nut
- Tightening specification COMPONENT LOCATION OVERVIEW - BATTERY FUSE PANEL, HIGH-VOLTAGE SYSTEM, 0K3 .
- Wiring Harness
- Grommet
- Nut
- Tightening specification COMPONENT LOCATION OVERVIEW - BATTERY FUSE PANEL, HIGH-VOLTAGE SYSTEM, 0K3 .
- Battery Fuse Panel
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - BATTERY FUSE PANEL, HIGH-VOLTAGE SYSTEM, 0K3 .
- Nut
- 6 Nm
- Battery Positive Cable Terminal Clamp
- Grommet
- Nut
- 9 Nm
