Battery -A-, REMOVING AND INSTALLING, IN LUGGAGE COMPARTMENT (0K0): Installing

Batteries from the Audi Parts Program have a base strip adapter for conforming to different clamping strips. See the battery operating instructions for information on when and how to use the base strip adapter.

At vehicles using a central venting system hose, this hose needs to be inserted in the respective vent opening at the battery again. The vent opening on the opposing side must be cosed with a blind plug.

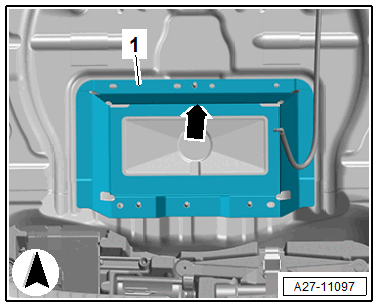

-- Push the battery all the way on the retaining bracket -1- -arrow- so that it contacts the battery clamping strip.

Courtesy of AUDI OF AMERICA, LLC

-- Attach the central venting system hose.

Install in reverse order of removal. Note the following:

-- When the ignition and electrical equipment are switched off, connect the battery in the following sequence:

-- First connect the battery positive cable terminal clamp -2- to the battery positive terminal "+" by hand and tighten the nut -3-.

Fig 1: Battery Ground Cable Connector With Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Close the cover -1- over the battery positive terminal.

-- Disconnect the connector -2- from the Battery Monitoring Control Module -J367- -item 3-.

Fig 2: Connecting Battery

Courtesy of AUDI OF AMERICA, LLC

-- Connect the battery ground cable clamp to the battery negative terminal "-" by hand and tighten the nut -1-.

-- Reconnect the connector to the Battery Monitoring Control Module -J367-.

-- Check the battery for secure fit after installation.

-- If the Battery -A- was replaced, then the new Battery -A- must be adapted.

Procedure

-- Connect the Vehicle Diagnostic Tester.

-- Select the Diagnostic  mode and start the diagnosis.

-- Select the Test plan  tab.

-- Select the Select individual test  button and select the following tree structure consecutively:

• Body
• Electrical Equipment
• 0001 - OBD-capable systems
• 0019 - Data Bus on Board Diagnostic Interface - J533
• 0019 - Data Bus on Board Diagnostic Interface, functions
• 0019 - Adaptation
• 0019 - Adapt battery

-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.

When the battery is reconnected, the following steps must be performed:

• Activate the one-touch up/down function for the power window regulators. Refer to the Service Information.
• Check all the control module DTC memories and erase the displayed "undervoltage" entry using the Vehicle Diagnostic Tester.

TIP:

After reconnecting the power supply, the ESP warning lamp can only go out after the vehicle has been driven a few meters.
