Battery -A-, REMOVING AND INSTALLING, IN ENGINE/MOTOR COMPARTMENT (0K0): Notes

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

For subsequent work on the SCR system, wait until all of the reducing agent has returned after switching off the ignition.

Removing

-- Switch off the ignition and all electrical equipment. Place the ignition key outside of the vehicle.

-- TFSI: remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- TDI: remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

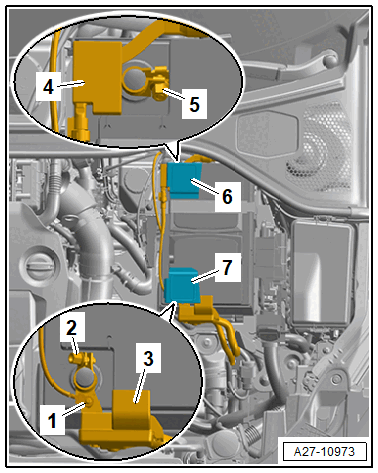

-- Remove the cover -6- over the battery ground terminal post.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nut -5- several turns and remove the battery ground cable terminal -4- from the battery negative terminal.

-- Open the cover -7- over the battery positive terminal.

-- Remove the wire -1- and free it up.

-- Loosen the nut -2- a few turns and remove the battery terminal clamp -3- for the positive cable from the battery positive terminal.

-- Free up the wiring harness.

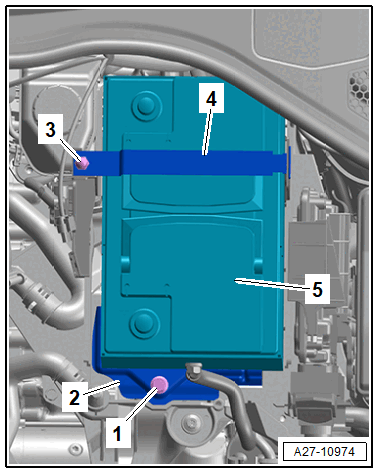

-- Remove the nut -3- and disengage the retaining bracket -4- on the opposite side.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- at the battery bracket -2-.

-- Remove the battery -5- from the battery tray and lift upward out of the engine/motor compartment.

The disposal regulations for batteries and sulfuric acid must be followed when disposing of batteries. Refer to Battery .
