Battery -A-, REMOVING AND INSTALLING, 0K3: Installing

Install in the reverse order of removal while noting the following:

Batteries from the Audi Parts Program have a base strip adapter for conforming to different clamping strips. See the battery operating instructions for information on when and how to use the base strip adapter.

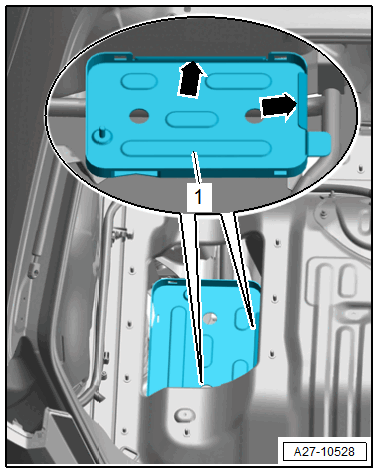

-- Insert the battery into the battery tray -1- so that the battery base strip touches the rear and side stop -arrows-.

Courtesy of AUDI OF AMERICA, LLC

• The battery must not be able to move at all anymore.

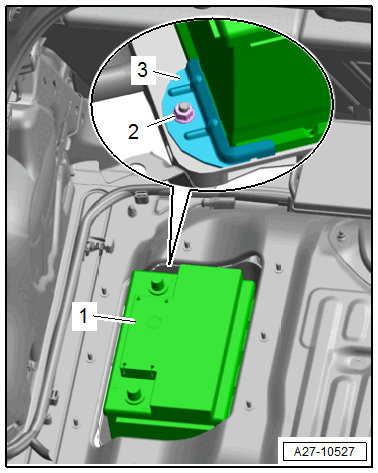

-- Install the battery bracket -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -2- on the battery bracket.

-- Make sure the battery -1- is secure after installation.

-- If the battery is replaced, then it must be adjusted using the Vehicle Diagnostic Tester.

Procedure

The Vehicle Diagnostic Tester is connected.

-- Select the Diagnostic  mode and start the diagnosis.

-- Select the Test plan  tab.

-- Select the Select individual test  button and select the following tree structure consecutively:

• Diagnostic-capable systems
• 0019 - Data Bus on Board Diagnostic Interface - J533
• 0019 - Data Bus on Board Diagnostic Interface, functions
• 0019 - Adaptation
• 0019 - Adapt battery

-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.

When the battery is reconnected, the following steps must be performed:

• Activate the one-touch up/down function for the power window regulators. Refer to the Service Information.
• Check all the control module DTC memories and erase the displayed "undervoltage" entry using the Vehicle Diagnostic Tester.

TIP:

After reconnecting the power supply, the ESP warning lamp can only go out after the vehicle has been driven a few meters.
