Battery Tray, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the battery. Refer to BATTERY, REMOVING AND INSTALLING .

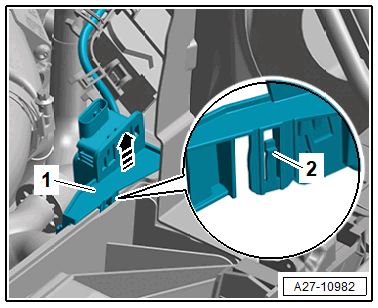

-- Equipment version: loosen the NOx Sensor Control Module -J583- on the battery tray and put aside, for this, release the retainers -2- and remove the bracket -1- upward -arrow-.
-- Equipment version: loosen the transmission ventilation at the battery tray and move to the side.

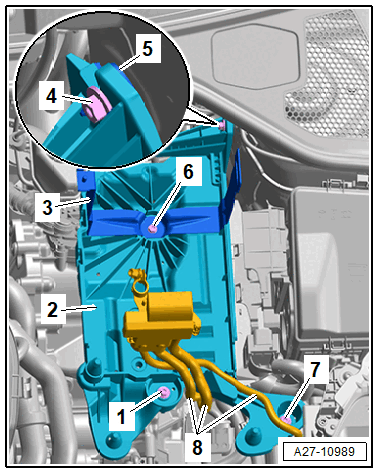

-- Free up the wiring harness -8-.
-- Remove the bolts -1, 6 and 7-.
-- Remove the nut -4-.
- Loosen the bonded rubber bushing -5- at the suspension strut before removing the battery tray.
-- Remove the battery tray -2- together with the retaining bracket -3-.
