Battery Jump Start Terminal, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to Battery -A-, DISCONNECTING AND CONNECTING, IN LUGGAGE COMPARTMENT (0K0) .

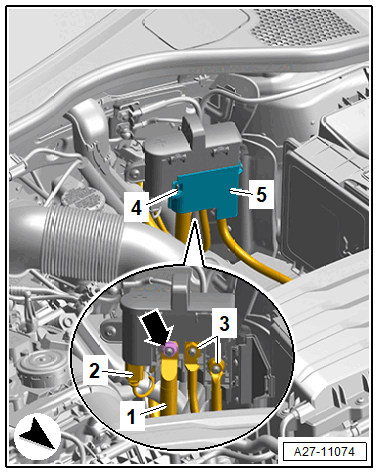

-- Release the catch -4- and pivot the lid -5- to the side.
-- Remove the nut -arrow- and move the wire -1- to the side.
-- Remove the wires -3- and move them to the side.
-- Disconnect the connector -2-.

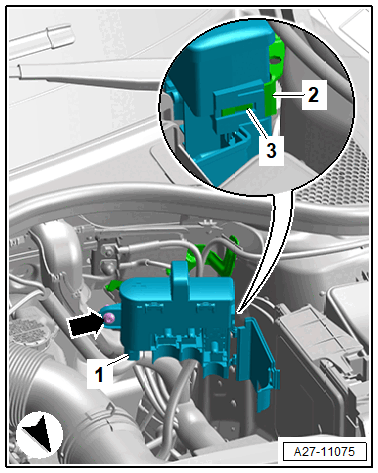

-- Remove the bolt -arrow-.
-- Release the catch -3- and remove the battery jump start terminal -1- forward from the mount -2-.
