Overview - Cover And Cushion, Q3

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

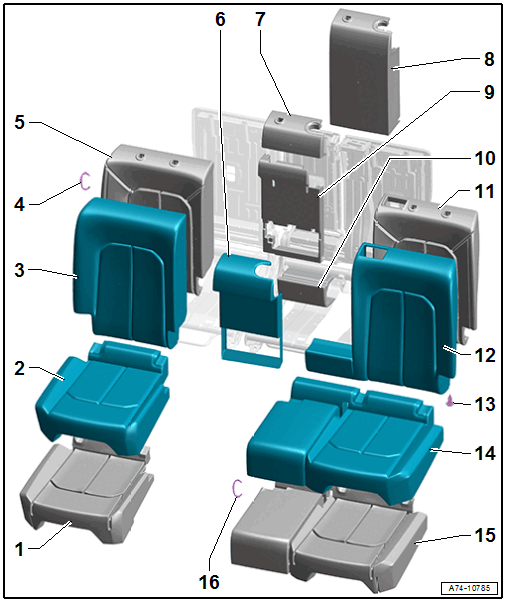

Fig 1: Exploded View Of Cover And Cushion

Courtesy of AUDI OF AMERICA, LLC

Seat Cushion
- Right rear seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 SEAT CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Seat Cover
- Right rear seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 SEAT CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Backrest Cover
- Right rear seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 BACKREST CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Upholstery Clip
- Replace after removing
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
Backrest Cushion
- Right rear seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 BACKREST CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Cover
- Pass-through with center armrest
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 BACKREST WITH PASS-THROUGH .
Center Cushion
- Upper
- Pass-through with center armrest only
- Removing and Installing. Refer to UPPER CENTER CUSHION, REMOVING AND INSTALLING, Q3 .
Cushion
- Pass-through without center armrest
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 BACKREST WITH PASS-THROUGH .
Padding
- Pass-through with center armrest
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 BACKREST WITH PASS-THROUGH .
Center Cushion
- Lower
- Removing and Installing. Refer to LOWER CENTER CUSHION, REMOVING AND INSTALLING, Q3 .
Backrest Cushion
- Left rear seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 BACKREST CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Backrest Cover
- Left rear seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 BACKREST CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Clip
- For attaching the cover to the seat frame
Seat Cover
- Left rear seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 SEAT CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Seat Cushion
- Left rear seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 SEAT CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING .
Upholstery Clip
- Replace after removing
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
