Overview - Cover And Cushion, A3

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

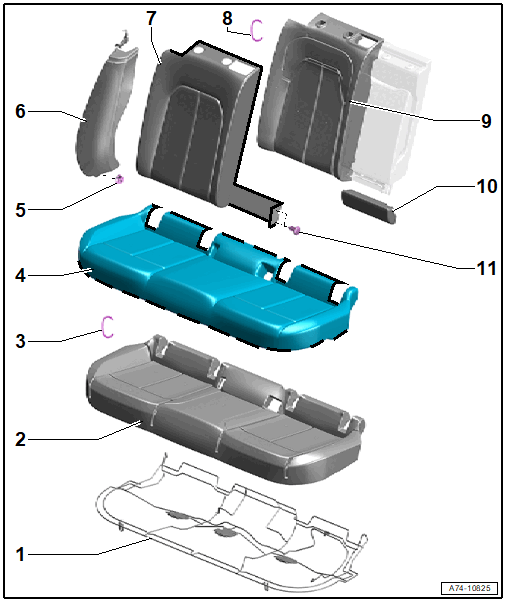

Fig 1: Exploded View Of Cover And Cushion, A3

Courtesy of AUDI OF AMERICA, LLC

Seat Frame
Seat Cushion
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, A3 .
Upholstery Clip
- Replace after removing
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
Seat Cover
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, A3 .
Nut
- 9 Nm
Side Cushion
- Removing and Installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
Backrest Cover
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, A3 BACKREST CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, A3 .
Upholstery Clip
- Replace after removing
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
Backrest Cushion
- Right rear seat
- Covers and Cushions, Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, A3 BACKREST CUSHION .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING, A3 .
Lower Center Cushion
- Removing and Installing. Refer to LOWER CENTER CUSHION, REMOVING AND INSTALLING, Q3 .
Clip
- For attaching the cover to the backrest frame
- Quantity: 2
