Cover And Cushion, Separating, Q3

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Upholstery Clip Pliers:VAG1634

Fig 1: Identifying Upholstery Clip Pliers VAG1634
Courtesy of AUDI OF AMERICA, LLC

The following components must be replaced after removal. Refer to OVERVIEW - COVER AND CUSHION .

Procedure

-- Remove the cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .

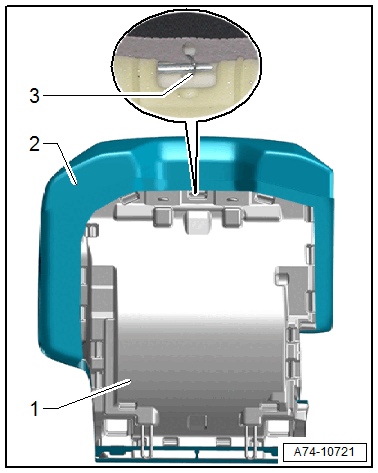

Cover and Cushion, Separating, Seat Cushion:

Courtesy of AUDI OF AMERICA, LLC

-- Use pliers to cut through the upholstery clips -3- all the way around the bottom of the seat.

-- Remove the cover -2- from the cushion -1- as much as possible and fold upward.

-- Cut the remaining upholstery clips and remove the cover from the cushion.

Cover and Cushion, Separating, Rear Seat Backrest

Courtesy of AUDI OF AMERICA, LLC

-- Pull off the cover -3- from the cushion -2- as far as possible and cut upholstery clips -1- using pliers.

-- Cut the remaining upholstery clips and remove the cover from the cushion.

Assembling

Assembly is performed in reverse order.
