Lower Center Cushion, Removing And Installing, Q3: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seats all the way forward.

-- Position the rear seat all the way toward the rear.

-- Remove the driver side seat cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, Q3 SEAT CUSHION .

-- Fold the pass-through forward.

-- Open the backrest cover on the clamping strips -1- by removing the cover -2- with the flat profile upward in direction of -arrow- out of the U-profile on the pass-through -3-.

Courtesy of AUDI OF AMERICA, LLC

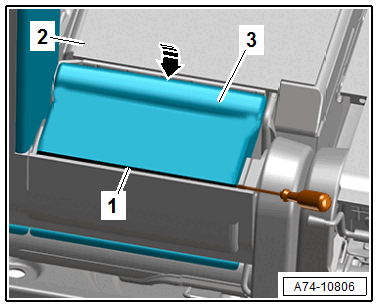

-- Use a flat-head screwdriver to pry out the clamping strip -1- for the cover from the backrest frame and remove.

Courtesy of AUDI OF AMERICA, LLC

-- Fold the pass-through -2- toward the rear.

-- At the same time, remove the cover and center cushion -3- under the pass-through forward in direction of -arrow-.

-- Disengage the cover on the center cushion.

-- Disengage the center cushion on the rear seat backrest and remove from the cover.
