Lower Center Cushion, Removing And Installing, A3: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the backrest with pass-through. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING, A3 .

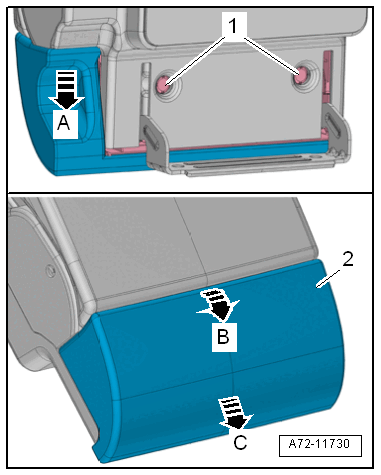

-- Using a flat-head screwdriver, release the tabs -1- and at the same time, push the center cushion -2- all the way downward in direction of -arrow A-.
-- Slightly lift the upper center cushion in direction of -arrow B- and at the same time disengage downward from the pass-through door in direction of -arrow C-.
