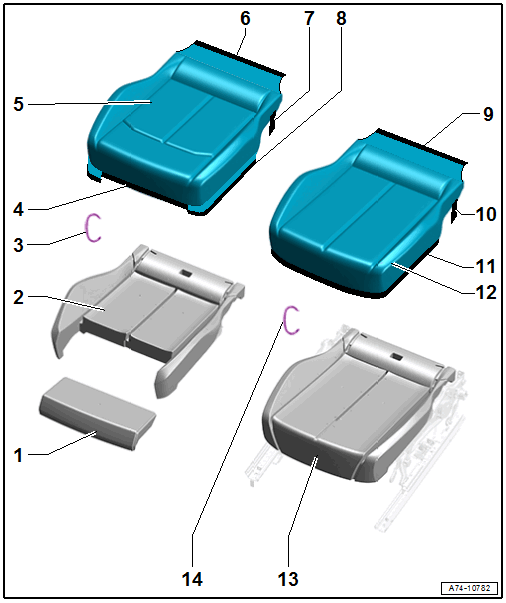

Overview - Seat Pan Cover And Cushion
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Cushion
- For the seat depth adjustment
- Sport seat only
- Removing and Installing. Refer to SEAT DEPTH ADJUSTER CUSHION, REMOVING AND INSTALLING .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT DEPTH ADJUSTER HEATING ELEMENT, REMOVING AND INSTALLING .
- Seat Cushion
- Sport Seat
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND PADDING, REMOVING AND INSTALLING, SPORT SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING FROM SEAT PAN .
- Versions with seat heating: attach a new heating element when replacing. Refer to Driver Seat Heating Element -Z6- /Front Passenger Seat Heating Element -Z8-, REMOVING AND INSTALLING .
- Upholstery Clip
- Replace after removing
- For securing the cover to the cushion
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
- Clamping Strip
- Sewn into cover
- For engaging the cover on the seat depth adjuster cushion
- Check for proper seating
- Cover
- Sport Seat
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND PADDING, REMOVING AND INSTALLING, SPORT SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING FROM SEAT PAN .
- Check that there are no folds after installing
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Check for proper seating
- Rubber Tab
- Sewn into cover
- Engaged in the seat pan to tighten the cover
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Rubber Tab
- Sewn into cover
- Engaged in the seat pan to tighten the cover
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Cover
- Shown for a standard seat with cloth seat covers
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING FROM SEAT PAN .
- Seat Cushion
- Shown for a standard seat with cloth seat covers
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .
- Cover and Cushion, Separating. Refer to COVER AND CUSHION, SEPARATING FROM SEAT PAN .
- Versions with seat heating: attach a new heating element when replacing. Refer to Driver Seat Heating Element -Z6- /Front Passenger Seat Heating Element -Z8-, REMOVING AND INSTALLING .
- Upholstery Clip
- For securing the cover to the cushion
- Replace after removing
- Install at the same location with Upholstery Clip Pliers:VAG1634 .
