Overview - Front Center Airbag
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

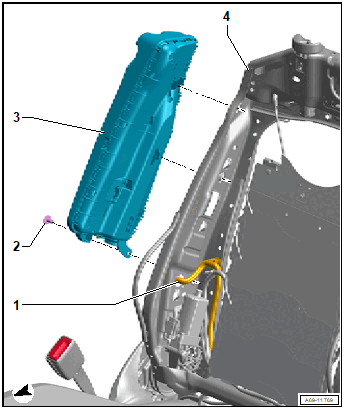

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Wire
- For Driver Side Front Center Airbag Igniter for Occupant Contact Protection -N737-
- Refer to FRONT CENTER AIRBAG WIRE, REMOVING AND INSTALLING
- Bolt
- Replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
- 10 Nm
- Driver Side Front Center Airbag Igniter for Occupant Contact Protection -N737-
- Backrest Frame
